PRODUCTS

Aqua Safe

Roto Moulded Plastic water storage tanks.

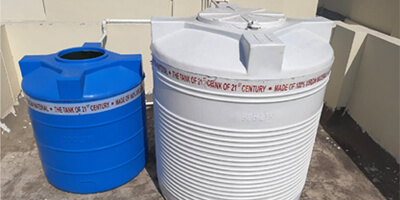

PRODUCTION TECHNIQUE

In a closed Rock and Roll type machine, Mould is heated up to a certain temperature( 170-200 degrees), after which firstly layer of powder is put in the mould. After 25 - 30 mins , the second layer is put in the mould.
Again after 25 - 30 mins, the mould is extracted from the machine and then cooled for half an hour. This is the production technique.

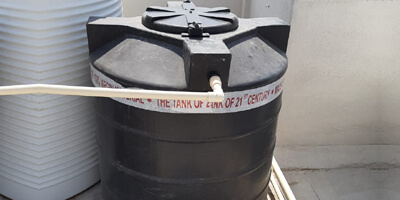

DOUBLE LAYER TANK

This tank has inner layer white and outer layer black. It is good in quality. Its weight it less as compared to Triple layer tank.
It is used in the market because it is comparitively cheap and good in quality.

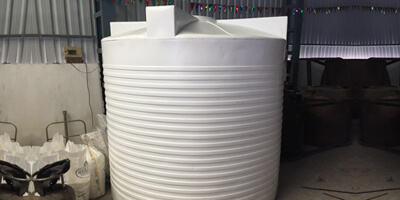

TRIPLE LAYER TANK

This tank has a inner white layer followed by a black layer in the middle followed by another layer which can be white/yellow/green as desired. It is heavier in weight as compared to DL tank.
This tank is most commonly used in households, construction projects, etc due to its quality and strength.

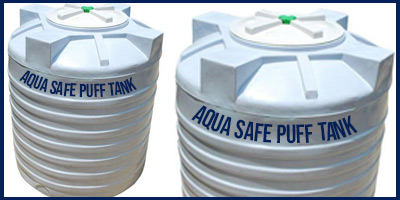

PUFF INSULATED TANK

Puff Insulation helps reduce the temperature of the water inside the tank, which in turn keeps the water cool inside the tank.

CYLINDRICAL VERTICAL TANKS WITH CLOSED TOP

Code No. Capacity (in Ltrs.) Diameter (cm) Height (cm) Manhole Size (cm)
FECV 1 200 715 570 37 cm
FECV 2 300 735 800 37 cm
FECV 3 400 800 915 37 cm
FECV 4 500 900 930 37 cm
FECV 5 750 1000 1065 37 cm
FECV 6 1000 1080 1225 37 cm
FECV 7 1500 1240 1345 37 cm
FECV 8 2000 1385 1510 45 cm
FECV 9 3000 1550 1745 45 cm
FECV 10 4000 1745 1840 45 cm
FECV 11 5000 1840 2035 45 cm

ISI Mark tanks

This tank is manufactured as per the guide lines, by Bureau Of Indian standards as per IS 12701.
